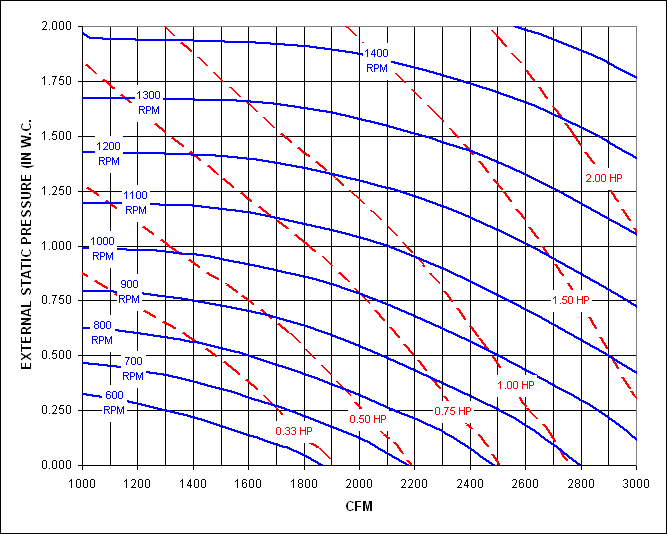

Performance Curves |
![](images/cif1.gif)
|
![](images/cif1mdrops.gif)
|

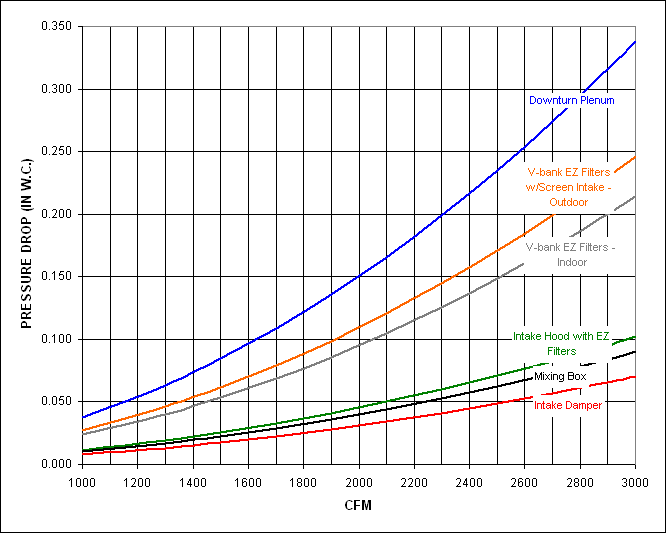

Notes:
The static pressure of non-woven polyester filters is 2 times the static pressure of standard EZ Kleen Filters.
The static pressure of throw-away filters is 1.33 times the static pressure of standard EZ Kleen Filters
Throw-away filters are used in v-bank intakes only.
|
|
![](images/cif1edrops.gif)
|
![](images/cif1cdrops.gif)
|
|
|

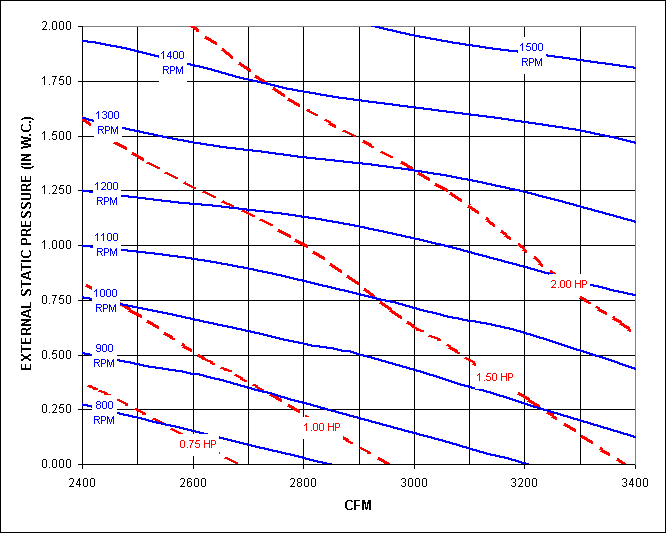

No Baffle Performance Curves |
![](images/cifnb1.gif)
|
![](images/cifnb1mdrops.gif)
|

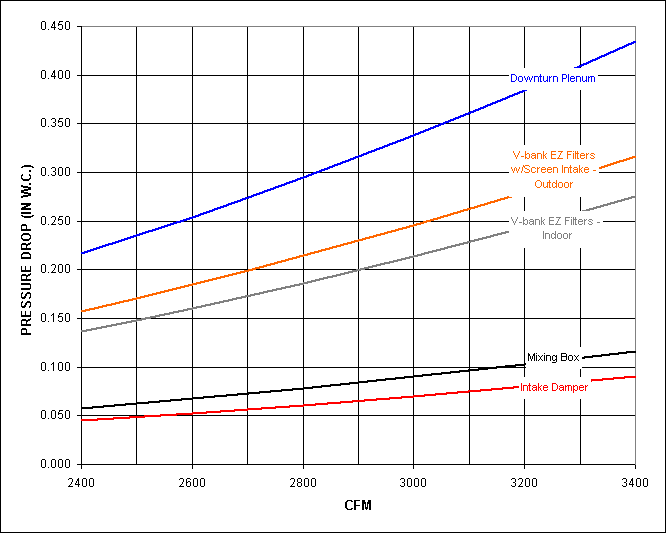

Notes:
The static pressure of non-woven polyester filters is 2 times the static pressure of standard EZ Kleen Filters.
The static pressure of throw-away filters is 1.33 times the static pressure of standard EZ Kleen Filters
Throw-away filters are used in v-bank intakes only.
|
|
![](images/cifnb1edrops.gif)
|
![](images/cifnb1cdrops.gif)
|
|
