Gas-Manifold Arrangements
|
|
|

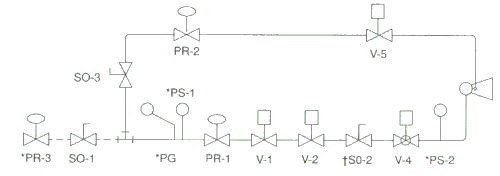

Standard Manifold
|
 |
|
|
|

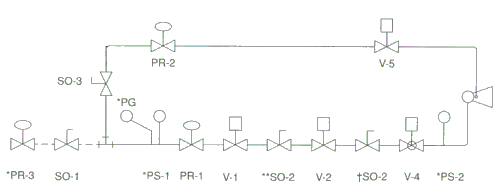

FM Gas Manifold - Meets MN State Gas Code Requirements
|
 |
|
|
|

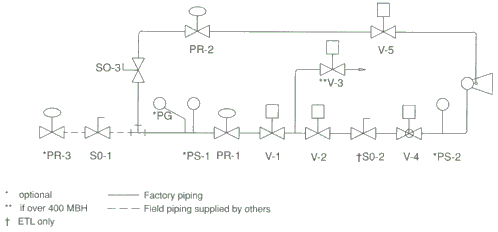

FIA/IRI Manifold
|
 |
|
|
|
A standard manifold has the necessary gas valves and safety components
for most burner applications. Select the proper manifold for projects
requiring specific insurance requirements. Manifold size is based on
gas pressure available and BTU input. Basic mainfold supplied with
two soleniod gas valves. Leak test valves can be included.
|
| PG |
pressure gauge |
V-1 |
main-gas valve no. 1 |
| PR-1 |
main-gas regulator |
V-2 |
main-gas valve no. 2 |
| PR-2 |
pilot-gas regulator |
V-3 |
normally open vent valve |
| PR-3 |
high-gas regulator |
V-4 |
modulating valve |
| SO-1 |
main-gas shutoff valve |
V-5 |
pilot gas valve |
| SO-2 |
leak-test valve |
PS-1 |
low-gas pressure switch |
| SO-3 |
pilot-gas shutoff valve |
PS-2 |
high-gas pressure switch |
|
