Water-Based Fire Suppression for Commercial Kitchens
CORE Fire Protection provides superior fire protection for commercial kitchens and is ideal for use in restaurants, nursing homes, hospitals, schools, hotels and other facilities.
Electric Fire Detection
CORE Firestat - The Firestat is a device installed in the hood's duct connection that measures temperature. The standard temperature setting is 360°F. If a temperature higher than the set point is sensed or a rapid rate of rise is detected, the Firestat contacts will close and energize the fire system.
Electric System with Battery Backup - The detection and pull station for CORE comprise an electric circuit that is connected to a battery backup system. In the event of a power outage, the power to all gas and electric appliances must be disrupted through the use of electric gas valves or shunt trip breakers. The battery powers the detection and pull station circuits, as well as monitoring those devices.
Microprocessor Based Control - Instant notification of problems with the system
CORE Circuit Board - Provides all the necessary monitoring, timing and supervision functions required for the reliable operation of the CORE Fire Protection System. If a fault is detected anywhere in the CORE system, the audible alarm will periodically sound and the "Fire System Activated" light will flash a fault code or message via control package to indicate the specific fault detected.
Supervised Loop - The supervised loop incorporates both redundancy and fault detection. It is the means by which fire sensors and pull stations are connected to the CORE system.
monitoring of system components
Integrated Self Cleaning
Duct and Plenum Spray Bar - The spray bar extends the full length of the hood immediately behind the filters. The bar is 3/4" brass fittings with nozzles that spray directly toward the back of the hood. During the wash cycle, at the end of the cooking period, hot water mixed with surfactant is sprayed for three minutes to remove grease build-up in the duct and plenum. Surfactant is a detergent used to increase the effectiveness of the cleaning.
Upon fire system activation, water is sprayed along the length of the plenum and into the duct to suppress the duct and plenum fire. The extinguishing agent for the duct and plenum is water injected with surfactant. The addition of surfactant aids the water in coating the greasy fuel and in spreading the cooling effect of the water to the fire.
plenum reduces fire hazard
Total Flood Coverage

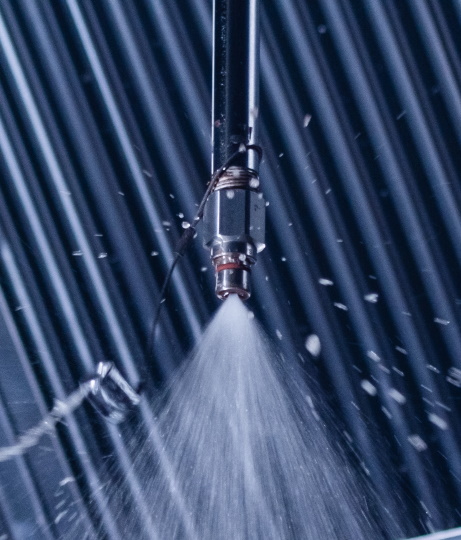

Total Flood Protection Nozzles and Lines - The discharge nozzles have been tested to ensure overlapping spray for the hazard zone. Each nozzle must have a metal blow-off cap to keep the nozzle tip orifice free of grease build-up.
Simplified Nozzle Placement - Installed a max of 36 inches apart and 30-55 inches above the cooking surface
Continuous Water Spray - Injected with surfactant to spray on cooking surface and in the plenum
Unlimited Water Supply - For suppressing the fire and to prevent re-flashing
Energy Recovery Option
Heat Recovery Coil - A listed coil accessory can be added to the hood plenum to recover heat from the exhaust air stream. The heat recovery coil is factory installed behind the hood filters and under each hood exhaust riser. Warm air in the exhaust stream passes over the coil and heats the cold water in the coil, acting as a preheater on the hot water supply line for the restaurant or facility. The coil recovers heat energy which increases water heating efficiency and reduces energy costs.
The Heat Recovery Coil option is available for hoods with CORE Fire Protection. The coil has a specialized e-coating to prevent grease build-up on the coil. The self cleaning function of the hood ensures that the surface of the coil is washed daily to ensure proper heat transfer. Each coil is equipped with manual shut off valves for service and maintenance.
CORE Provides Robust & Reliable Protection
Total Flood Protection for appliances and Duct & Plenum coverage. Total Flood offers simplified piping and nozzle placement to cover all appliances in the hazard zone under the hood. The nozzle placement and spray pattern overlaps the hazard zone and allows for increased flexibility for appliance type and location under the hood. Duct and Plenum coverage is provided via a spray bar that extends the full length of the hood immediately behind the filters in the hood.
The system is capable of automatic detection and actuation via an electric thermal detector located in the hood and duct connection. When the temperature exceeds the rating of the sensors, the CORE Protection is engaged. The superior cooling effects of water are utilized for rapid flame knockdown and quick extinguishing of the fire. Remote manual activation is also available via a remote pull station.
