USBI-RM
General and Restaurant Duty Utility Set
Air Volume: 250 - 28,000 cfm | Maximum SP: 6" wg. @ standard air densityDrawings
- Isolator Detail Drawing
- Exploded View Belt Drive Small
- Exploded View Belt Drive Large
- Exploded View Direct Drive Small
- Exploded View Direct Drive Large
- Exploded View Extension Assembly
- Exploded View Inlet Connection
- Exploded View Service Duct
- Exploded View Rain Cap Assembly
- Revit Model
- Submittal Drawings
Additional Information
Certifications
CaptiveAire certifies that Models USBI11-RM through USBI36-RM are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and 311 and comply with the requirements of the AMCA Certified Ratings Program. Tested to AMCA Standards 210 and 300. Meets California Energy Commission (CEC) Title 20 Regulations.
Models USBI11-RM through USBI36-RM are ETL Listed under file numbers 103336443COL-001 and 102628244PRT-001 and comply with UL705 (electrical), and ULC-S645 Standards and CSA Std C22.2, No 113.
May 2024
Ideal for High Temperature, Heavy Duty Grease Applications
Features & Benefits
- Use with General Ventilation (UL705) and for Restaurant Duty
- Vented Motor Cover and Continuously Sealed Housing for added weather protection
- Scroll and Motor Compartment Connected for added Structure
- Easily Accessible Clean Out Door and Motor Access from 3 Sides
- Standard 2" Grease Drain
- Standard Emergency Disconnect Switch
- Discharge Outlet Flanges Available on All Sizes
- Temperature Ratings - Aluminum Wheel, 350 degrees F
Options
- Direct Drive
- Discharge Extension
- Discharge Screens
- Discharge Shutter (UL705 Only)
- Discharge Configurations: Vertical, Horizontal Left or Horizontal Right
- Vibration Isolators

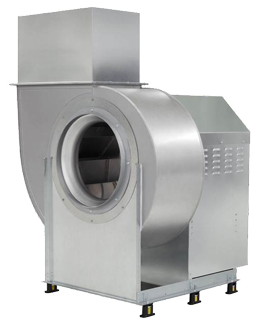

Additional Product Views
Certifications
CaptiveAire Systems, Inc. certifies that Models USBI11-RM through USBI36-RM shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and Publication 311, and comply with the requirements of the AMCA Certified Rating Program. Tested to AMCA Standards 210 and 300. Meets California Energy Commission (CEC) Title 20 Regulations.
Models USBI11-RM through USBI36-RM are ETL Listed under file numbers 103336443COL-001 and 102628244PRT-001 and comply with UL705 (electrical), and ULC-S645 Standards and CSA Std C22.2, No 113.
May 2024
